QJB8050QUINTON HAZELL

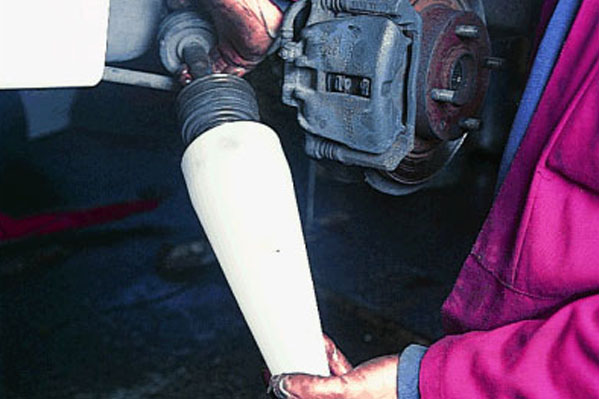

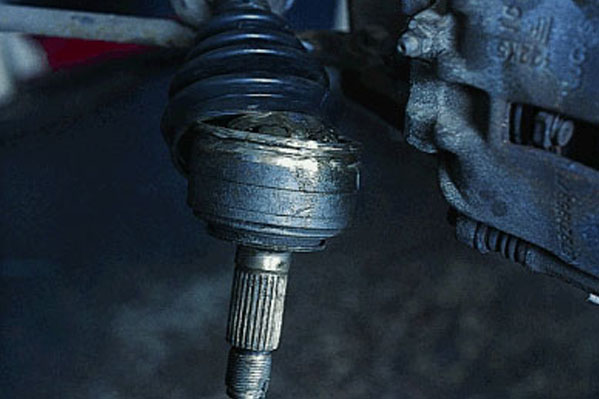

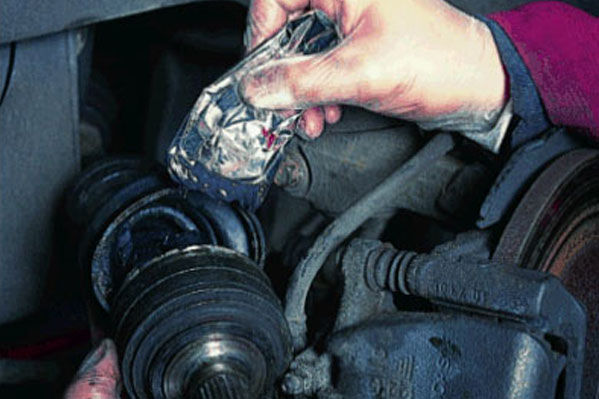

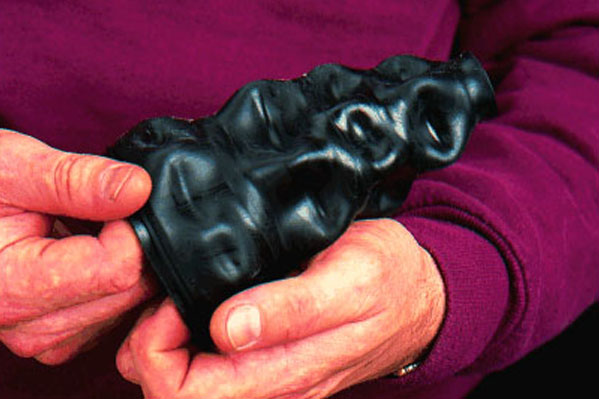

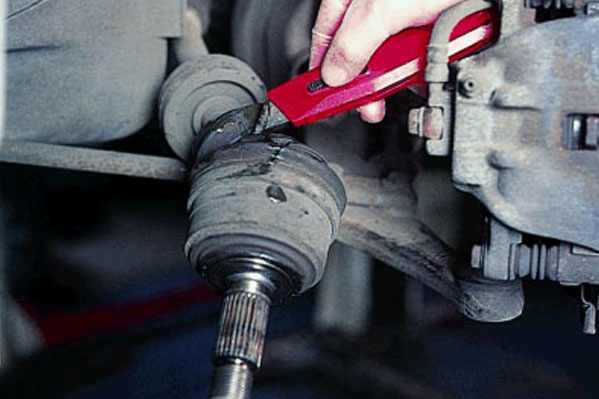

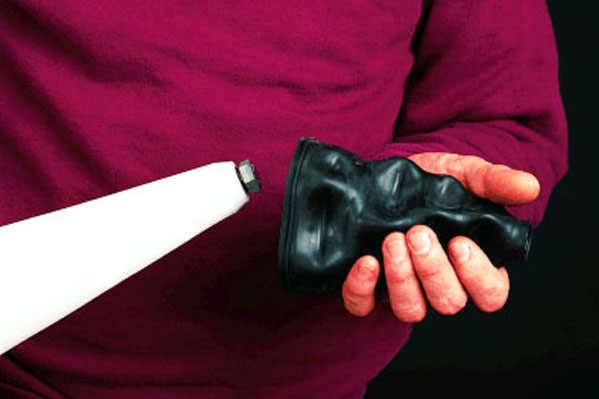

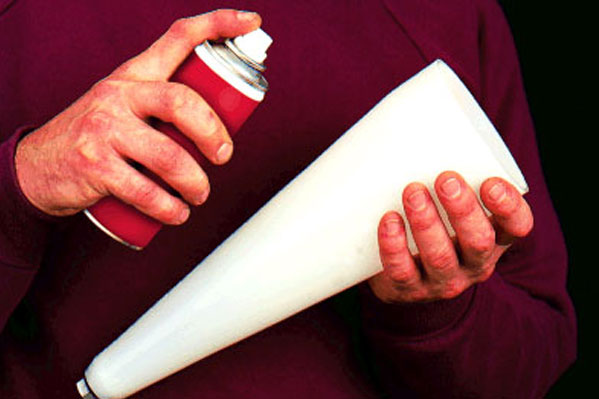

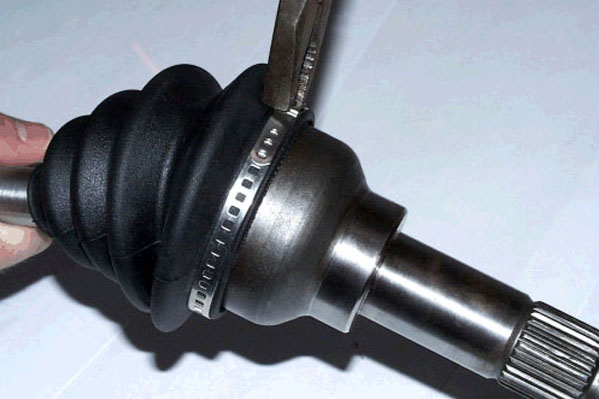

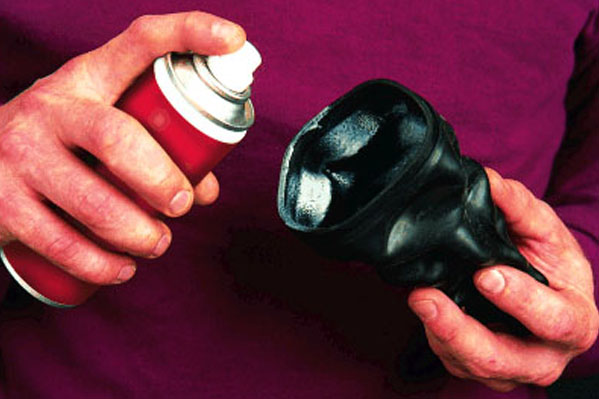

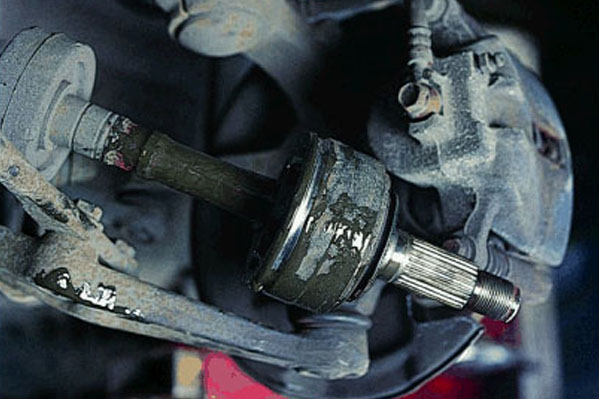

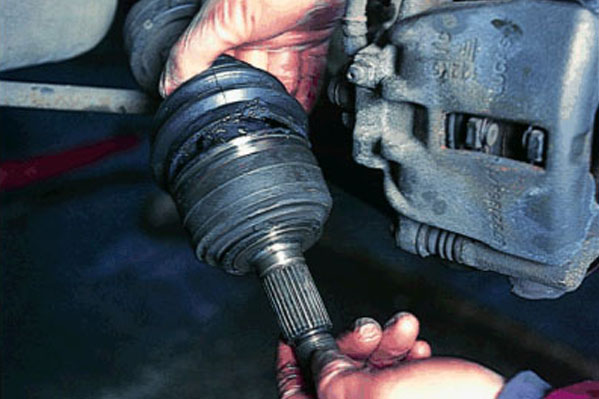

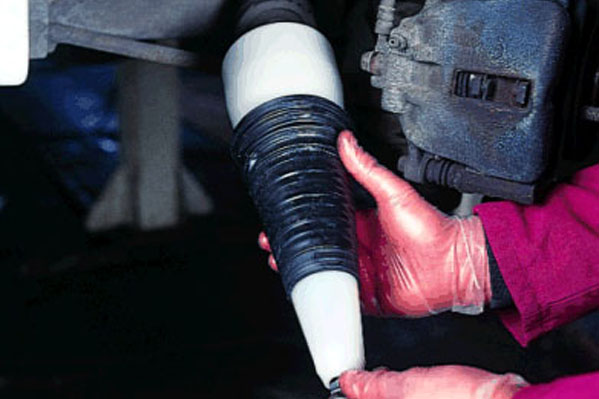

Pic.1 Remove the road wheel and hub. Remove the old boot andclips. Clean any grease or debris from the shaft and joint.Pic. 2 Check fitting cone for sharp or rough areas. Smoothwith emery cloth if necessary. Spray outer with cone spray.Pic. 3 If fitting the new boot to an outer CV joint, turnthe boot inside out. (this will almost always be the case)Spray the inside with cone spray.Pic. 4 Place the large end of the boot over the narrow endof the cone. Place the large end of the cone over the joint.Pic.5 Push the boot forcefully until it is lear of the cone.Pic. 6 Remove the cone and turn the boot right side out - ifnecessary.Pic. 7 Snip the corner of the grease sachet and fill thejoint. Slide and stretch the boot into position over thejoint.Pic. 8 Secure the boot with fixing clips, removing anyexcess with tin snips. Replace the hub and road wheel.

AUDI: Q7 (4LB) (2006-03 » 2016-01)
AUSTIN: METRO I Fastback (XF) (1980-10 » 1990-04)
BMW: 3 (E90) (2004-02 » 2012-02)
CITROEN: BERLINGO / BERLINGO FIRST Furgon/minivan (M_) (1996-07 » 2011-12), BERLINGO / BERLINGO FIRST nadwozie wielkoprzestrzenne (MPV) (1996-07 » ), BERLINGO Furgon/minivan (B9) (2008-04 » ), C4 coupe (LA_) (2004-11 » 2013-12), C4 GRAND PICASSO I (UA_) (2006-10 » 2013-12), C4 I (LC_) (2004-11 » 2014-12), C4 PICASSO I nadwozie wielkoprzestrzenne (MPV) (UD_) (2006-10 » 2015-12), C5 I (DC_) (2001-03 » 2005-03), C5 I Break (DE_) (2001-06 » 2004-09), C5 III (RD_) (2008-02 » 2017-05), C5 III Break (RW_) (2008-02 » 2017-05), EVASION nadwozie wielkoprzestrzenne (MPV) (22, U6) (1994-03 » 2002-07), JUMPY I (U6U_) (1994-06 » 2006-12), JUMPY II (VF7) (2007-01 » 2016-03), SAXO (S0, S1) (1996-02 » 2004-04), XANTIA (X1_, X2_) (1993-03 » 2003-04), XANTIA Break (X1_, X2_) (1995-06 » 2003-04), XM (Y4) (1994-05 » 2000-10), XM Break (Y4) (1994-05 » 2000-10), XSARA (N1) (1997-04 » 2005-12), XSARA Break (N2) (1997-10 » 2010-03), XSARA coupe (N0) (1998-01 » 2005-04), XSARA Furgon/kombi (1998-05 » 2005-08), XSARA PICASSO (N68) (1999-09 » 2012-06)
FIAT: DUCATO Autobus (230_) (1994-03 » 2005-05), DUCATO Furgon (230_) (1994-03 » 2005-05), DUCATO Platforma / podwozie (230_) (1994-03 » 2002-04), GRANDE PUNTO (199_) (2005-06 » ), SCUDO Autobus (220_) (1996-02 » 2006-12), SCUDO Autobus (270_, 272_) (2007-01 » 2016-03), SCUDO Furgon (220_) (1996-02 » 2006-12), SCUDO Furgon (270_, 272_) (2007-01 » 2016-03), SCUDO Platforma / podwozie (270_, 272_) (2007-01 » 2016-03), SEDICI (189_) (2006-06 » 2014-10), ULYSSE (179_) (2002-08 » 2011-06), ULYSSE (220_) (1994-06 » 2002-08)
FORD: FIESTA V (JH_, JD_) (2001-11 » 2014-12)
HYUNDAI: SONATA III (Y-3) (1992-07 » 2000-12), SONATA IV (EF) (1998-03 » 2005-12)
MAZDA: 3 (BK) (2003-10 » 2009-12), 323 III Hatchback (BF) (1985-08 » 2004-07), 6 Hatchback (GG) (2002-08 » 2008-12), 6 sedan (GG) (2002-06 » 2008-12), 6 Station Wagon (GY) (2002-01 » 2008-02), 626 III Hatchback (GD) (1987-06 » 1992-05), 626 III Station Wagon (GV) (1987-09 » 1998-10), 626 IV Hatchback (GE) (1991-08 » 1998-08)
MERCEDES-BENZ: KLASA A (W168) (1997-07 » 2005-08), KLASA M (W164) (2005-02 » 2012-12)
MITSUBISHI: 3000 GT coupe (Z1_A) (1989-06 » 2000-08)
NISSAN: KUBISTAR Furgon (X76) (2003-08 » )
PEUGEOT: 1007 (KM_) (2005-04 » ), 106 II (1A_, 1C_) (1996-04 » 2005-05), 206 CC (2D) (2000-09 » 2008-12), 206 liftback (2A/C) (1998-08 » 2012-12), 206 SW (2E/K) (2002-07 » ), 3008 I nadwozie wielkoprzestrzenne (MPV) (0U_) (2009-05 » 2017-12), 306 (7B, N3, N5) (1993-04 » 2003-10), 306 Break (7E, N3, N5) (1994-06 » 2002-12), 306 kabriolet (7D, N3, N5) (1994-01 » 2002-04), 306 liftback (7A, 7C, N3, N5) (1993-01 » 2003-10), 307 (3A/C) (2000-08 » 2012-12), 307 Break (3E) (2002-03 » 2009-12), 307 CC (3B) (2003-03 » 2009-06), 307 SW (3H) (2002-03 » 2009-12), 308 CC (4B_) (2009-02 » 2015-12), 308 I (4A_, 4C_) (2007-09 » 2016-12), 308 SW I (4E_, 4H_) (2007-09 » 2014-10), 405 II (4B) (1992-01 » 1999-12), 405 II Break (4E) (1992-08 » 1998-10), 406 (8B) (1995-08 » 2005-01), 406 Break (8E/F) (1996-10 » 2004-10), 406 coupe (8C) (1997-03 » 2005-02), 407 (6D_) (2004-02 » 2011-12), 407 coupe (6C_) (2005-10 » ), 407 SW (6E_, 6D_) (2004-05 » 2011-12), 5008 (0U_, 0E_) (2009-06 » 2017-03), 605 (6B) (1989-06 » 1999-09), 607 (9D, 9U) (2000-01 » ), 806 (221) (1994-06 » 2002-08), BOXER Autobus (230P) (1994-03 » 2009-12), BOXER Furgon (230L) (1994-03 » 2006-08), EXPERT Furgon (222) (1995-07 » 2008-03), EXPERT Furgon (VF3A_, VF3U_, VF3X_) (2007-01 » ), EXPERT Platforma / podwozie (2007-01 » ), EXPERT Platforma / podwozie (223) (1995-12 » 2006-12), PARTNER Furgon/minivan (5_, G_) (1996-06 » ), PARTNER nadwozie wielkoprzestrzenne (MPV) (5_, G_) (1996-05 » )
PORSCHE: CAYENNE (9PA) (2002-09 » 2010-12)
RENAULT: 11 (B/C37_) (1983-03 » 1995-09), 19 I (B/C53_) (1988-01 » 1994-09), 19 I Cabriolet (D53_) (1991-07 » 1992-04), 19 I Chamade (L53_) (1988-01 » 1992-12), 19 II (B/C53_) (1991-01 » 2001-06), 19 II Cabriolet (D53_, 853_) (1992-04 » 2001-06), 19 II Chamade (L53_) (1992-04 » 2003-08), 21 (B48_) (1989-07 » 1994-06), 21 Kombi (K48_) (1986-03 » 1997-07), 21 sedan (L48_) (1986-03 » 1997-07), 9 (L42_) (1981-09 » 1997-02), CLIO I Furgon/hatchback (S57_) (1991-01 » 1998-09), CLIO II Furgon/hatchback (SB0/1/2_) (1998-09 » ), KANGOO Express (FC0/1_) (1997-08 » ), LAGUNA I (B56_, 556_) (1993-11 » 2002-08), LAGUNA I Grandtour (K56_) (1995-09 » 2002-08), MASTER II Autobus (JD) (1997-12 » 2010-01), MASTER II Furgon (FD) (1997-12 » 2013-12), MASTER II Platforma / podwozie (ED/HD/UD) (1997-12 » 2013-03), MEGANE I (BA0/1_) (1995-08 » 2004-12), MEGANE I Cabriolet (EA0/1_) (1996-10 » 2003-08), MEGANE I Classic (LA0/1_) (1996-09 » 2008-08), MEGANE I Coach (DA0/1_) (1996-03 » 2003-08), RAPID Furgon/minivan (F40_, G40_) (1985-07 » 2001-11), SCENIC I nadwozie wielkoprzestrzenne (MPV) (JA0/1_, FA0_) (1999-08 » 2010-07), TWINGO I (C06_) (1993-03 » 2012-10), TWINGO II (CN0_) (2007-03 » )
SUZUKI: BALENO (EG) (1995-03 » 2009-12), BALENO Kombi (EG) (1995-04 » 2005-04), BALENO liftback (EG) (1995-03 » 2002-05)
VOLVO: 440 (445) (1988-08 » 1996-12), 460 (464) (1988-09 » 1996-12), 480 (482) (1986-04 » 1996-07), 850 (854) (1991-06 » 1997-10), 850 Kombi (855) (1992-04 » 1997-10), C70 I coupe (872) (1997-03 » 2002-09), C70 I kabriolet (873) (1998-03 » 2005-10), S70 (874) (1996-11 » 2000-11), V70 I (875, 876) (1995-12 » 2000-12)
VW: TOUAREG (7LA, 7L6, 7L7) (2002-10 » 2013-01), TOUAREG (7P5, 7P6) (2010-01 » 2018-12)
