2PT 009 496-801HELLA

zestaw reflektorów do jazdy dziennej
ŚWIATŁA LEDOWE OKRĄGŁE 3 DIODY 12/24V
Parametry:
  • Sposób montażu : Oprawa
  • Rodzaj mocowania : mocowanie poziome
  • Projekt lampy : LED
  • Rodzaj lampy : LED
  • Napięcie [V] : 24
  • Napięcie [V] : 12
  • Strona zabudowy : Przód pojazdu
  • Wysokość [mm] : 52
  • Funkcja lampy : ze światłem do jazdy dziennej (LED)
  • Rodzaj zabezpieczenia (kod IP) : IP5K9K
  • Liczba funkcji świateł : 1
  • spełnia wymagania Normy ECE : R10
  • Liczba diod LED : 3
  • Długość przewodu [mm] : 1800
  • Kolor szkła reflektora : przezroczysty
  • Pobór mocy [W] : 11
  • Zabezpieczenie przed błędnym podłączeniem biegunów : tak
  • Materiał szyby rozpraszającej : Tworzywo PC (Polycarbonat)
  • Jednostka ilości : Zestaw
  • Montaż/demontaż koniecznie do wykonania przez fachowców! :
( brutto)
SKU 2PT 009 496-801
Producent

Kłodnica
Towar dostępny od ręki
0
Magazyn 1.
Pn-Pt zamówienia do 10:55 - dostawa 3 trasa Zamówienia do 17:55 dostawa 1 trasa rano
0
Magazyn 2.
Zamówienia do 17:55 dostawa 1 trasa rano
0
Magazyn 3.
Zamówienia do 17:55 dostawa 1 trasa rano
0

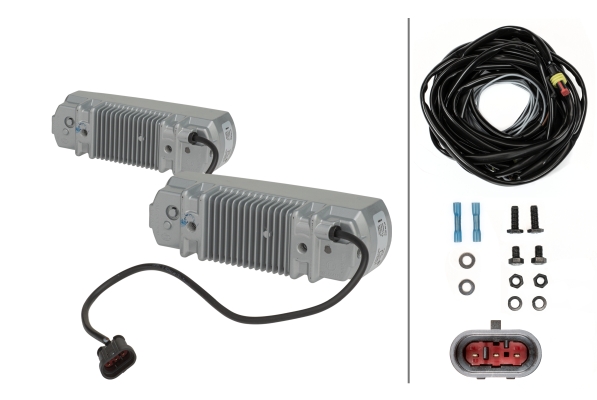

Symbol Nazwa Ilość
8KW 744 837-002  łącznik przewodów
8KA 165 959-001  zestaw kabli
9GD 746 185-002  uszczelka
8JA 746 184-032  obudowa wtyczki

Regarding single or double function lamps with LEDs withoutflasher functionIn connection with these low powers, which arevery different from bulb versions, there can beproblems during operation on various traction vehiclesbecause further lighting functions are detectedby some traction vehicles. This is a vehiclecomfort function which is not required by legislation anddoes not release drivers from their obligationto see for themselves that the lighting equipmentis working.Here, too, faulty diagnoses can be a result of the lowerpower levels involved (instrument panel in the driver cabindicates a bulb failure although the functionis working).The functional ability of these light failure checks canonly be established by the vehicle manufacturer.Operation of the light with alternating current or pulseddirect current is not permitted!The individual light functions may only be operated with avehicle fuse of max. 3A.In the case of onboard current limitation with the valuesspecified above by the onboard control unitan additional fuse for the lamp is not required.

ALTO / NILFISK: W1D6B
HELLA: 009 496-801, 2PT 009 496-801, E1 2344, E1 4479
HERTH+BUSS ELPARTS: 80659103
